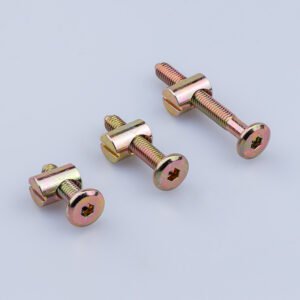

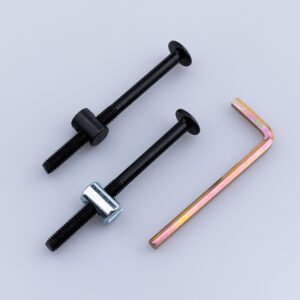

Flat Head Hex Socket Screws: Flush, Strong, and Aesthetic Furniture Joints

In furniture manufacturing, whether a screw head protrudes directly affects product safety, aesthetics, and packaging efficiency. To help furniture manufacturers solve this issue, Taiyuanfeng proudly launches its full range of flat head hex socket screws (countersunk hexagon socket screws) – a flush, high-torque, and reusable fastening solution for panel furniture, cabinets, chairs, and custom joinery.

Key Features

• Flat head (82°/90° countersunk angle) : Sits completely flush with the wood surface or embedded nut – no protrusion, no scratching, and no need for extra caps.

• Hex socket drive : Handles higher torque than Phillips or slotted drives, works perfectly with pneumatic/electric tools, and resists cam-out.

• Precision threads : Available in full thread or partial thread, sizes M4, M5, M6, lengths from 8mm to 50mm, with custom lengths upon request.

Typical Furniture Applications

1. 1. Panel furniture (wardrobes, bookcases, TV stands) : Works with embedded nuts (threaded inserts / dowel nuts) for invisible, reusable joints.

   2. Chair & table cross braces and leg glides : Countersunk head prevents scratching floors or fabrics.

   3. Cabinet hinges and drawer slides : Hex drive allows precise installation in tight spaces without slipping.

   4. Bed frame connectors : Made of high-strength carbon steel to withstand dynamic loads and resist loosening.

Material & Finish

• Base material : Carbon steel (10B21 / SWCH 35K, property class 8.8 or 10.9) or 304/316 stainless steel (for rust protection).

• Finishes : Blue-white zinc, yellow zinc, black zinc, black oxide, nickel plating, Dacromet (high salt-spray resistance for outdoor or humid environments).

• Optional locking : Nylon pre-applied patch or mechanical lock washers.

Why Choose Taiyuanfeng’s Tapered Flat Head Screws?

• Flush & clean : No need for hole plugs or stickers – enhances the premium look of your furniture.

• Higher assembly efficiency : Hex drive + precision threads reduces cam-out and rework, increasing assembly speed by over 30%.

• Customization : Head angle (90°/100°/120°), head marking (grade or logo), special color coatings, and anti-loosening treatments available.

• Strict quality control : Every batch passes thread go/no-go gauge, hardness, and salt-spray tests, complying with ISO 9001.

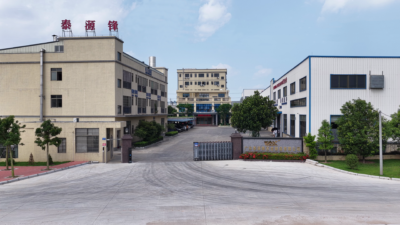

Taiyuanfeng is a precision fastener manufacturer and exporter with over 20 years of experience in furniture screws. Our factory is ISO 9001 certified, and our products are exported to Europe, America, Southeast Asia, and the Middle East. We offer one-stop service from drawing confirmation to bulk delivery, and we can develop custom non-standard screws for your specific needs.
